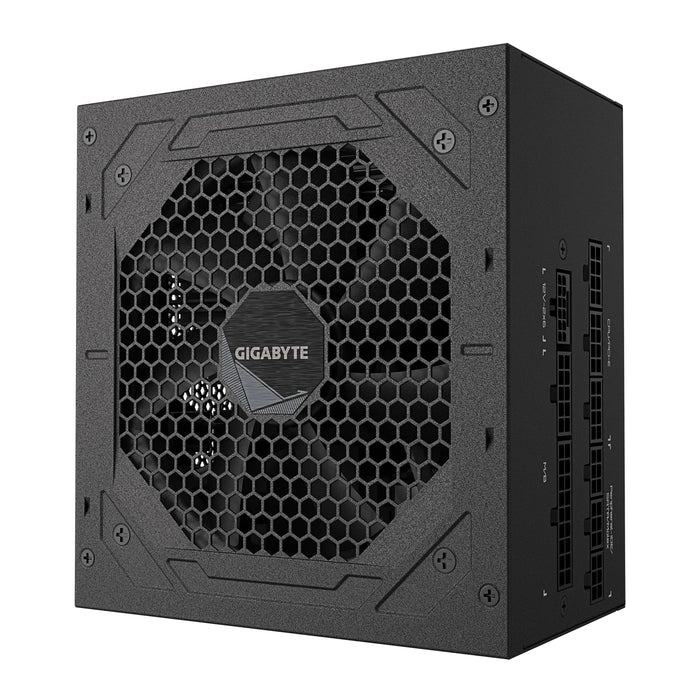

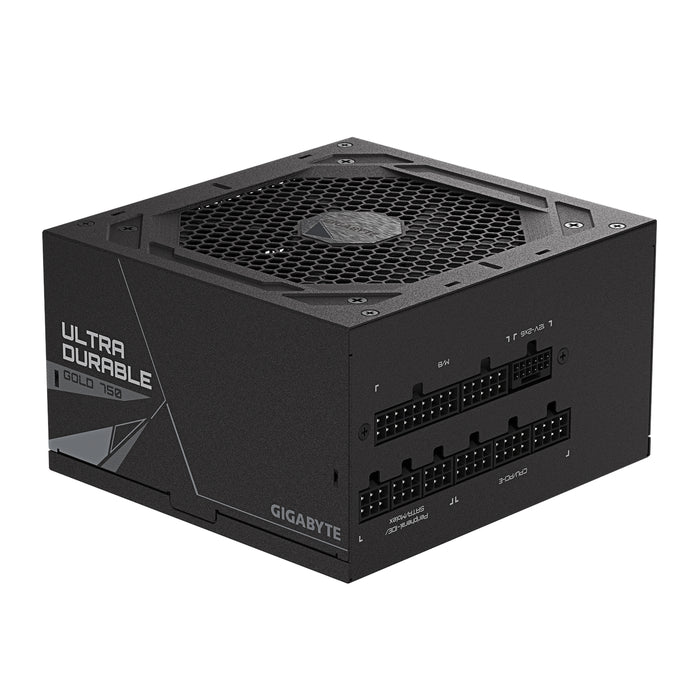

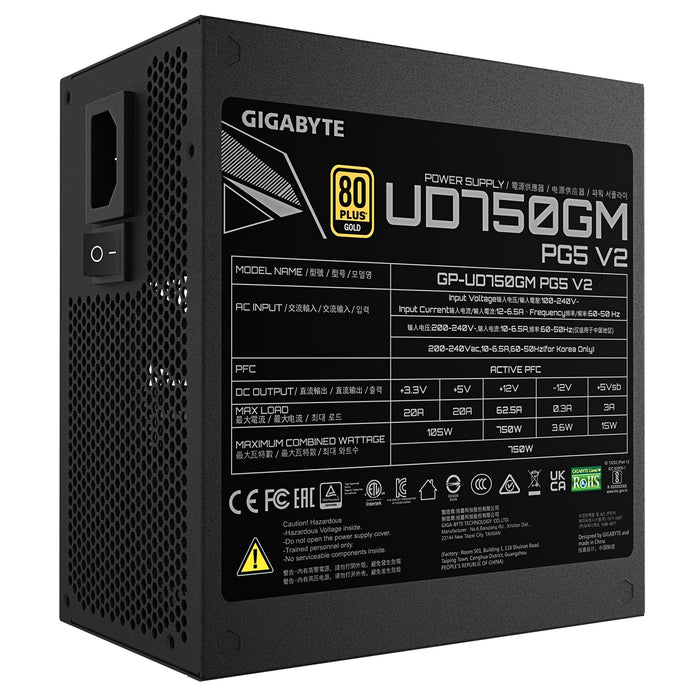

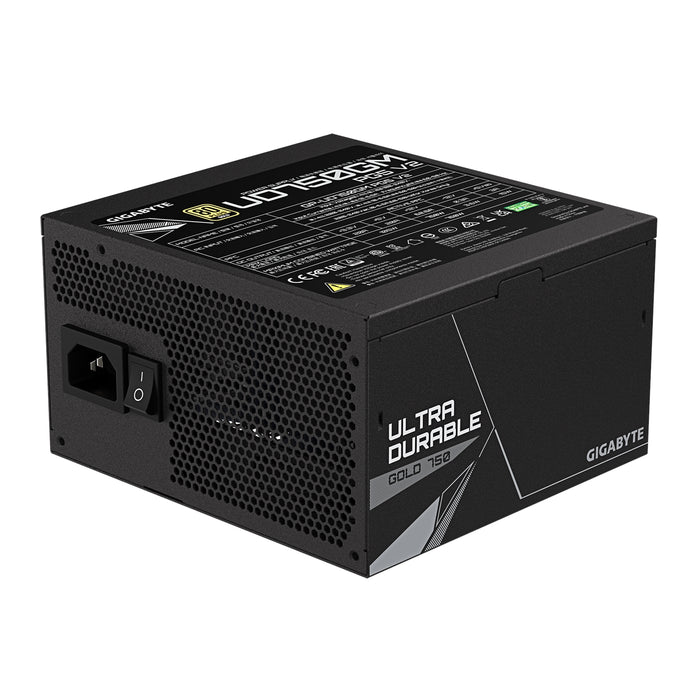

GIGABYTE UD750GM PG5 V2 750W PSU - 80+ Gold, ATX 3.1, Modular
GIGABYTE UD750GM PG5 V2 750W PSU, PCIe Gen 5.1, 80 PLUS Gold, Fully Modular, ATX 3.1 Compatible, UK Plug – ULTRA DURABLE POWER FOR NEXT-GEN SYSTEMS
The GIGABYTE UD750GM PG5 V2 delivers exceptional performance, long-term stability, and full compatibility with the latest GPUs and CPUs. Designed for builders who demand efficiency and reliability, this ATX 3.1 & PCIe Gen 5.1 ready power supply is perfect for powering modern gaming rigs and high-performance systems.
✅ Next-Gen Ready (ATX 3.1 & PCIe Gen 5.1) – Handles up to 3x GPU and 2x system power excursions, featuring a native 16-pin 12VHPWR cable that delivers up to 600W to next-generation graphics cards.
✅ Ultra Durable Components – Built with 100% Japanese capacitors for superior stability, efficiency, and long-lasting reliability.

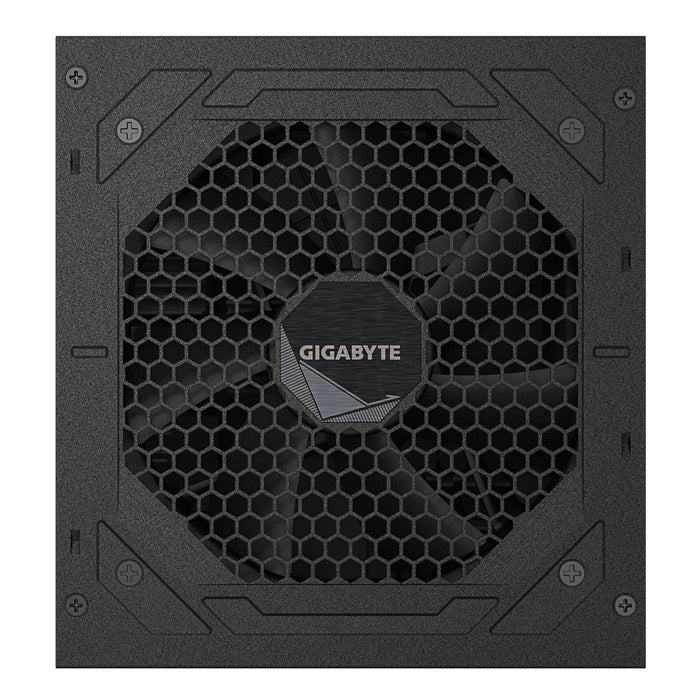

✅ Smart 120mm Hydraulic Bearing Fan – The HYB fan automatically adjusts speed based on power load, staying silent under 20% usage for quieter operation.
✅ Fully Modular Design – Includes black embossed modular cables, reducing clutter and improving case airflow and thermal efficiency.
✅ 80 PLUS Gold Certified – Achieves up to 90% efficiency at 50% load, ensuring reduced power waste, lower heat, and quieter performance.
✅ Comprehensive Protection – Equipped with OVP, OPP, SCP, UVP, OCP, OTP for total system safety.
✅ Compact 140mm Length – Ideal for tight cases without sacrificing output power or cooling performance.
Specifications
• Model: GP-UD750GM PG5 V2
• Form Factor: Intel ATX 12V v3.1
• Total Power: 750W
• Input Voltage: 100–240V AC (Full Range)
• Fan Type: 120mm Hydraulic Bearing (HYB)
• Efficiency: 80 PLUS Gold (90% Typical Load)
• MTBF: >100,000 hours
• Dimensions: 150 × 140 × 86 mm
• Cable Type: Embossed, All Black
• Protections: OVP / OPP / SCP / UVP / OCP / OTP

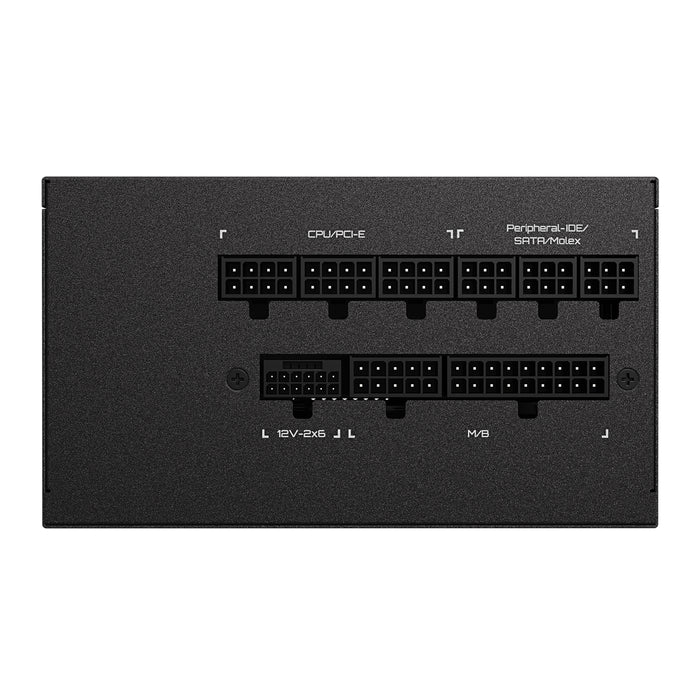

• Connectors:
– ATX 20+4 Pin × 1 (610mm)
– CPU 4+4 Pin × 2 (650mm + 200mm)
– PCI-E 6+2 Pin × 4 (600mm + 150mm ×2)
– PCI-E 12+4 Pin × 1 (700mm)
– SATA × 8 (600mm + 150mm + 150mm + 150mm ×2)
– 4-Pin Peripheral × 3 + Floppy × 1 (500mm + 150mm + 150mm + 150mm)
