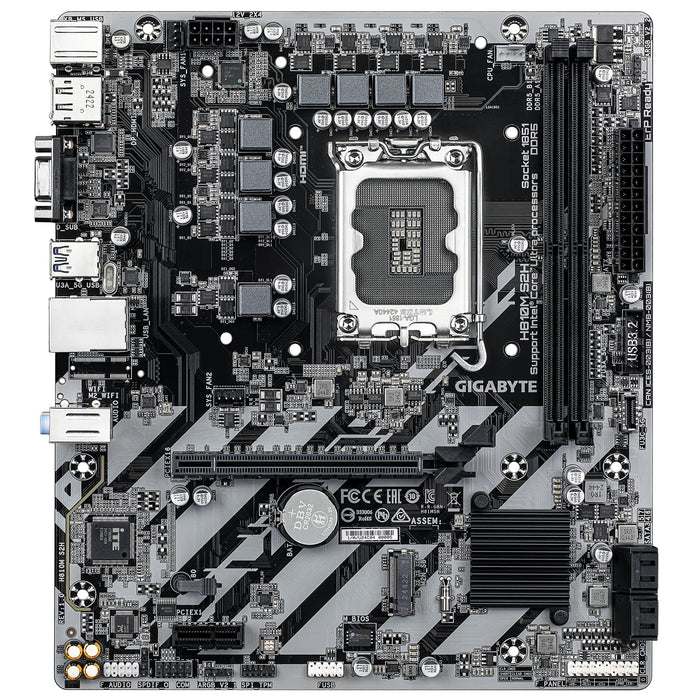

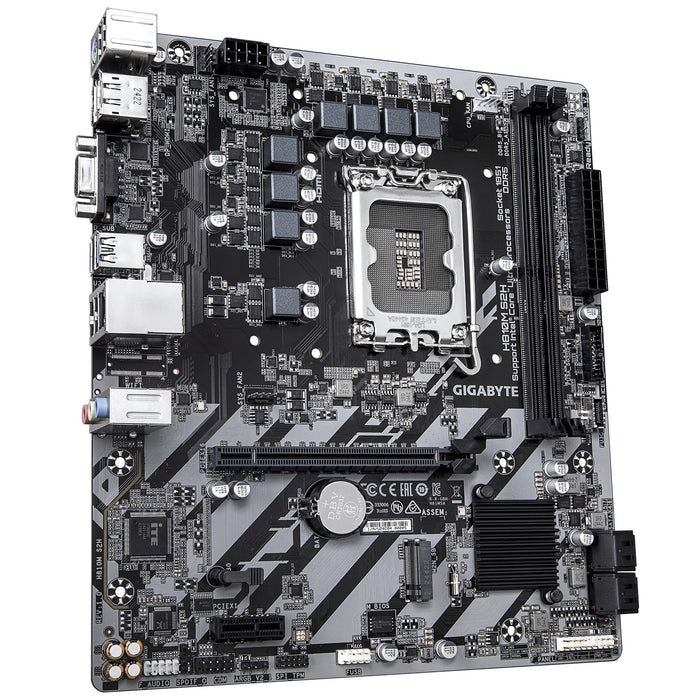

Gigabyte H810M S2H LGA1851 DDR5 Micro-ATX Motherboard
Gigabyte H810M S2H Intel LGA1851 Micro-ATX Motherboard
The Gigabyte H810M S2H is a versatile and durable Micro-ATX motherboard designed for Intel Core Ultra processors (Series 2). Powered by the Intel H810 chipset, it delivers DDR5 memory support, PCIe 4.0 storage performance and broad display connectivity, making it an ideal foundation for home, office and business PC builds.
With Gigabyte Ultra Durable construction, an upgraded hybrid VRM design and a user-friendly BIOS, the H810M S2H provides stable performance and long-term reliability in a compact form factor.
Key Features & Benefits
✔ Supports Intel Core Ultra processors (Series 2) on LGA1851 socket
✔ 2 x DDR5 DIMM slots supporting up to 128GB dual-channel memory
✔ PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs
✔ PCIe 4.0 x16 slot with EZ-Latch quick-release design
✔ Hybrid 4+1+2 phase VRM for enhanced power stability
✔ GbE LAN with bandwidth management software
✔ HDMI 2.1, DisplayPort 2.1 and D-Sub display outputs
✔ Micro-ATX form factor ideal for compact systems
Durable Performance by Design
Built using Gigabyte Ultra Durable components, the H810M S2H is engineered to deliver consistent performance and extended lifespan. Premium capacitors, reinforced power delivery and a robust PCB design ensure dependable operation under daily workloads.
Enhanced Hybrid VRM Power Delivery
The hybrid 4+1+2 phase VRM solution provides improved power distribution to the CPU, graphics engine and system agent, ensuring smooth performance and reliable operation with modern multi-core Intel processors.
Smart Cooling Control
✔ Smart Fan 6 for advanced fan control and thermal tuning
✔ Multiple fan headers for flexible airflow configurations
✔ Quiet operation while maintaining effective cooling
This allows the system to stay cool, quiet and efficient.
Easy Assembly & Friendly BIOS
The H810M S2H is designed for hassle-free system building with EZ-Latch PCIe, EZ Debug Zone diagnostics and a refined UC BIOS interface. Q-Flash Auto Scan simplifies BIOS updates without manual file searching.
Flexible Display Connectivity
With HDMI, DisplayPort and D-Sub outputs, the H810M S2H supports modern and legacy displays, making it particularly suitable for business environments and multi-monitor office setups.
Technical Specifications
Brand: Gigabyte
Model: H810M S2H
Chipset: Intel H810 Express
Form Factor: Micro-ATX (24.4 x 21.5cm)
CPU Support
Socket: LGA1851
Compatible CPUs: Intel Core Ultra Processors (Series 2)
Memory
Slots: 2 x DDR5 DIMM
Maximum Capacity: 128GB
Supported Speeds: DDR5 6400 / 5600 MT/s
Architecture: Dual Channel
ECC: ECC Un-buffered (operates in non-ECC mode)
XMP Support: Yes

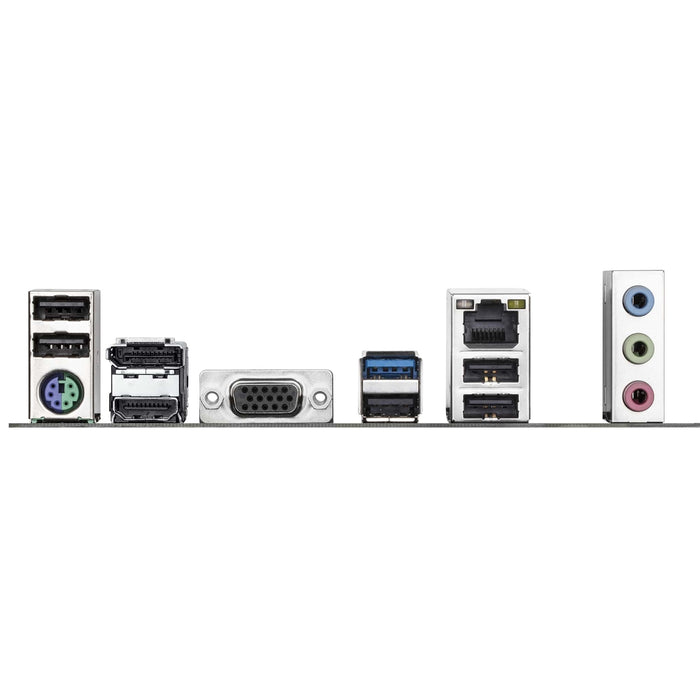

Graphics & Display Outputs
Integrated Graphics: Intel HD Graphics (CPU dependent)
HDMI: 1 x HDMI 2.1, up to 4096 x 2160 @ 60Hz
DisplayPort: 1 x DP 2.1, up to 3840 x 2160 @ 60Hz
D-Sub: 1 x VGA, up to 1920 x 1200 @ 60Hz
Multi-Display: Supports up to triple display
Expansion Slots
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
Storage
1 x M.2 PCIe 4.0 x4/x2 (2280)
4 x SATA 6Gb/s
RAID 0 / 1 / 5 / 10 (SATA)
Networking
LAN: Realtek GbE (10/100/1000 Mbps)
Network bandwidth management software included
USB Connectivity
Rear Panel:
1 x USB 3.2 Gen 1
5 x USB 2.0
Internal Headers:
1 x USB-C (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header
1 x USB 2.0 header
Audio
Realtek HD Audio Codec
Supports 2 / 4 / 5.1 / 7.1-channel audio
High-end audio capacitors
Audio Noise Guard
S/PDIF Out support
Operating System Support
Windows 11 64-bit
Windows 10 64-bit
Why Choose the Gigabyte H810M S2H
The Gigabyte H810M S2H is a strong choice for users needing modern DDR5 performance, PCIe 4.0 storage and flexible display connectivity in a compact Micro-ATX design. Its enhanced VRM layout and Ultra Durable build make it especially well suited for office systems, multi-monitor setups and long-term everyday use.
