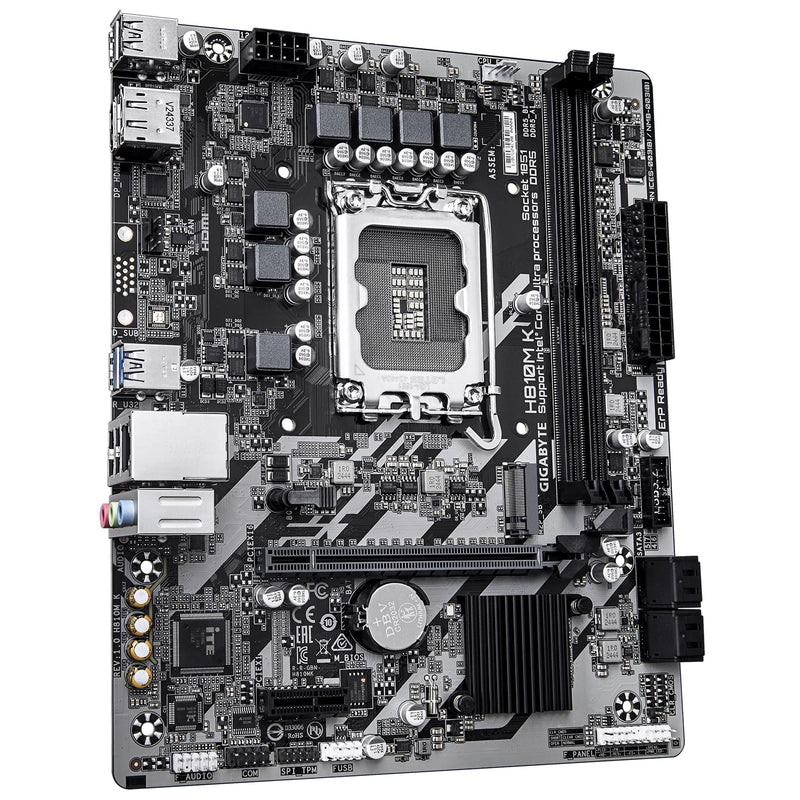

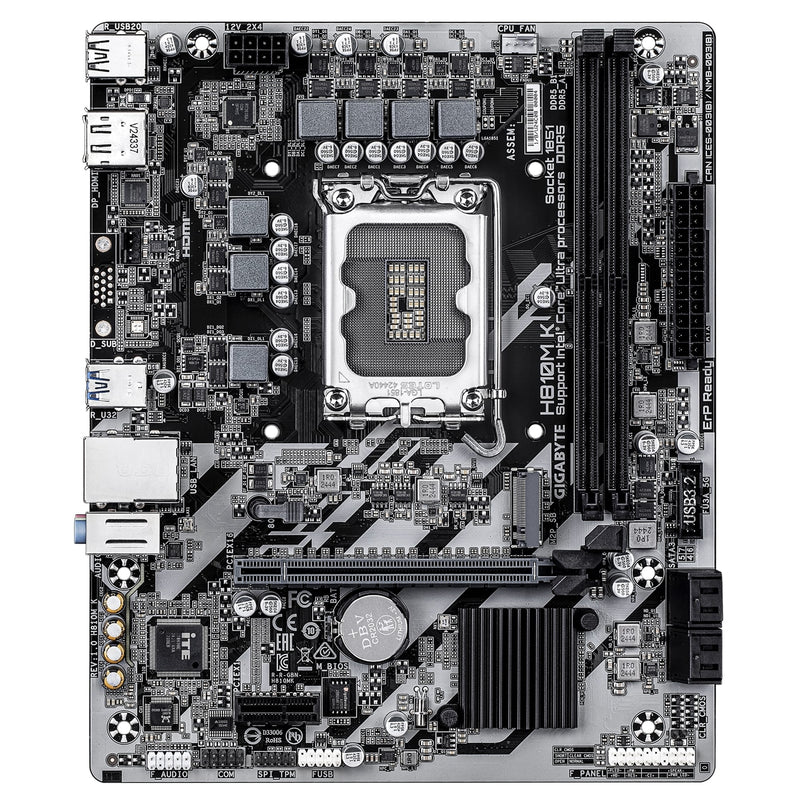

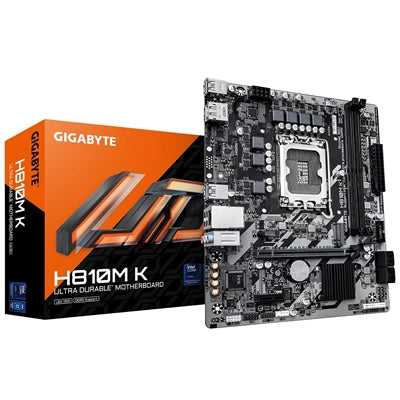

Gigabyte H810M K LGA1851 DDR5 Micro-ATX Motherboard
Gigabyte H810M K Intel LGA1851 Micro-ATX Motherboard
The Gigabyte H810M K is a reliable and future-ready Micro-ATX motherboard designed for Intel Core Ultra processors (Series 2). Built on the Intel H810 chipset, it combines DDR5 memory support, PCIe 4.0 storage and Gigabyte’s Ultra Durable design to deliver stable performance for everyday computing, business systems and entry-level gaming builds.
With a clean layout, EZ-Latch features and an intuitive BIOS, the H810M K offers an easy building experience while maintaining long-term reliability.
Key Features & Benefits
✔ Supports Intel Core Ultra processors (Series 2) on LGA1851 socket
✔ 2 x DDR5 DIMM slots supporting up to 128GB dual-channel memory
✔ PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs
✔ PCIe 4.0 x16 graphics slot with EZ-Latch quick release
✔ Reliable GbE LAN with bandwidth management
✔ HDMI 2.1 and DisplayPort 2.1 display outputs
✔ Hybrid 3+1+2 phase VRM for stable power delivery
✔ Micro-ATX form factor for compact system builds
Durable Performance by Design
Built using Gigabyte Ultra Durable components, the H810M K is engineered for consistent performance and long-term reliability. High-quality capacitors, reinforced power delivery and optimized PCB design ensure dependable operation across a wide range of workloads.
Hybrid VRM Power Delivery
The hybrid 3+1+2 phase VRM solution delivers clean and stable power to the CPU, graphics engine and system agent, ensuring smooth performance with modern multi-core processors and integrated graphics.
Smart Cooling Control
✔ Smart Fan 6 technology for precise thermal management
✔ Multiple fan headers for customized airflow profiles
✔ Quiet operation under low and medium loads
This ensures effective cooling without unnecessary noise.
Easy Assembly & Friendly BIOS
The H810M K is designed with builders in mind, featuring EZ-Latch PCIe for easy graphics card removal, an EZ Debug Zone for quick troubleshooting and a redesigned UC BIOS with Q-Flash Auto Scan for simple BIOS updates.
Next-Generation Connectivity
With PCIe 4.0 support for both graphics and storage, plus DDR5 memory compatibility, the H810M K provides a solid platform for current and future system upgrades.
Technical Specifications
Brand: Gigabyte
Model: H810M K
Chipset: Intel H810 Express
Form Factor: Micro-ATX (24.4 x 21.5cm)
CPU Support
Socket: LGA1851
Compatible CPUs: Intel Core Ultra Processors (Series 2)
Memory
Slots: 2 x DDR5 DIMM
Maximum Capacity: 128GB
Supported Speeds: DDR5 6400 / 5600 MT/s
Architecture: Dual Channel
ECC: ECC Un-buffered (operates in non-ECC mode)
XMP Support: Yes
Graphics & Display Outputs
Integrated Graphics: Intel HD Graphics (CPU dependent)
HDMI: 1 x HDMI 2.1, up to 4096 x 2160 @ 60Hz
DisplayPort: 1 x DP 2.1, up to 3840 x 2160 @ 60Hz
D-Sub: 1 x VGA, up to 1920 x 1200 @ 60Hz
Expansion Slots
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
Storage
1 x M.2 PCIe 4.0 x4/x2 (2280)
4 x SATA 6Gb/s
RAID 0 / 1 / 5 / 10 (SATA)
Networking
LAN: Realtek GbE (10/100/1000 Mbps)
Bandwidth management software included

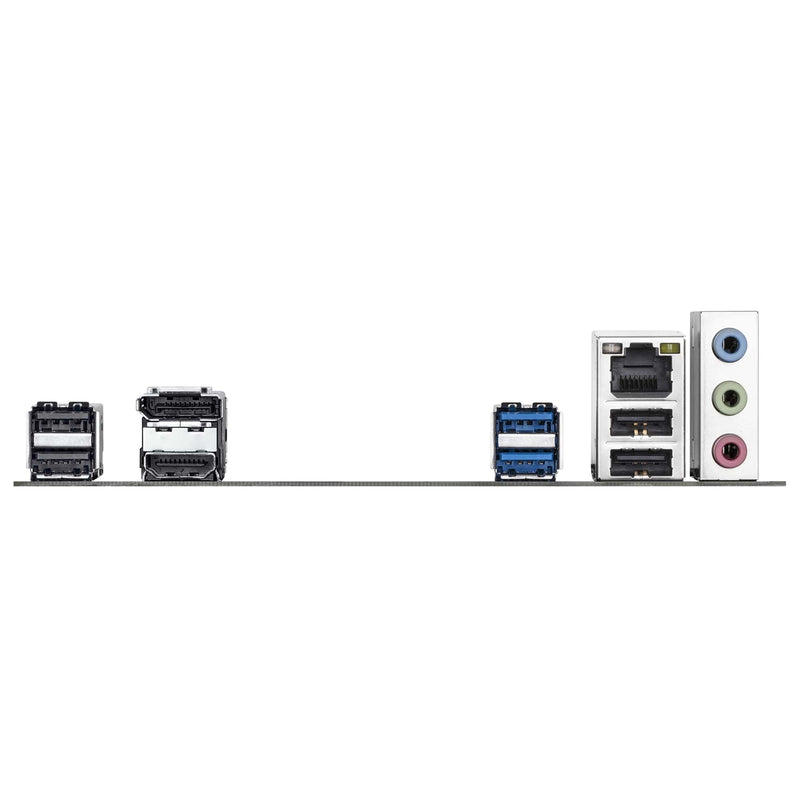

USB Connectivity
Rear Panel:
1 x USB 3.2 Gen 1
5 x USB 2.0
Internal Headers:
1 x USB-C (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header
1 x USB 2.0 header
Audio
Realtek HD Audio Codec
Supports 2 / 4 / 5.1 / 7.1-channel audio
High-end audio capacitors and Audio Noise Guard
S/PDIF Out support
Operating System Support
Windows 11 64-bit
Windows 10 64-bit
Why Choose the Gigabyte H810M K
The Gigabyte H810M K is an excellent choice for builders seeking a dependable, modern motherboard with DDR5 and PCIe 4.0 support at an accessible price point. Its Ultra Durable construction, easy-to-use BIOS and balanced feature set make it ideal for home, office and entry-level gaming systems.
