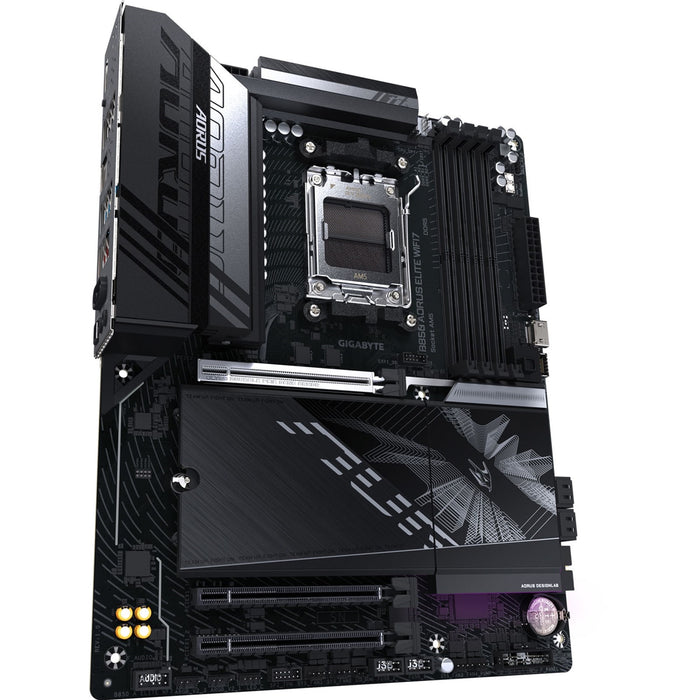

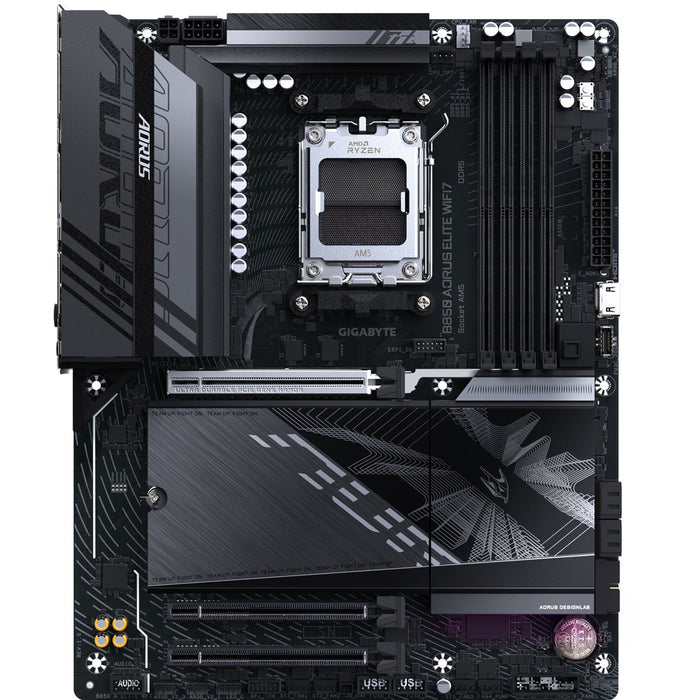

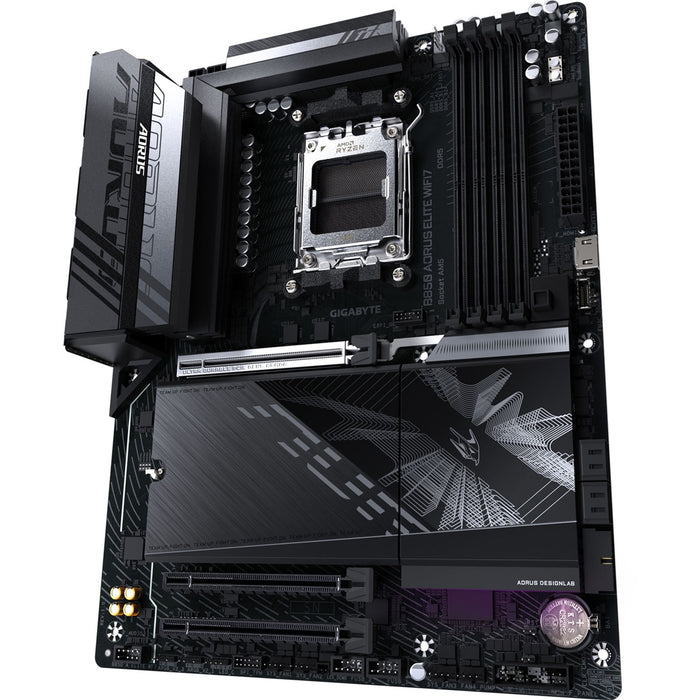

Gigabyte B850 AORUS ELITE WIFI7 AM5 ATX Motherboard – DDR5, PCIe 5.0
Gigabyte B850 AORUS ELITE WIFI7 AM5 ATX Motherboard – Product Description
The Gigabyte B850 AORUS ELITE WIFI7 is engineered for next-generation AMD Ryzen 9000, 8000, and 7000 Series processors, delivering exceptional performance, high-speed connectivity, and advanced thermal design for modern gaming and professional workloads. Built on the AMD B850 chipset, it features cutting-edge technologies including Wi-Fi 7, PCIe 5.0 support, ultra-fast DDR5 overclocking, and triple M.2 connectors for high-speed storage.
Designed for gamers, creators, and PC enthusiasts, this ATX motherboard combines robust power delivery with advanced cooling—featuring a 14+2+2 phase digital VRM, Thermal Armor, and extended M.2 heatsinks. With improved usability features such as EZ-Latch screwless PCIe/M.2 installation and WIFI EZ-Plug antenna design, building and upgrading is easier and faster than ever.
Comprehensive connectivity comes via dual USB-C (including USB 3.2 Gen 2x2), multiple high-speed USB ports, 2.5GbE LAN, and Wi-Fi 7 with a directional high-gain antenna. With support for DDR5 memory speeds up to 8200MT/s, an onboard sensor panel link, and intuitive BIOS/UI enhancements, the B850 AORUS ELITE WIFI7 is built to deliver a seamless, high-performance system experience.
Key Features
✔ Supports AMD Ryzen 9000 / 8000 / 7000 Series processors
✔ X3D Turbo Mode for next-generation gaming performance
✔ Dual-channel DDR5, supporting speeds up to 8200MT/s (OC)
✔ 14+2+2 phase digital VRM for stable power delivery
✔ Wi-Fi 7 + 2.5GbE LAN for ultra-fast networking
✔ 3× M.2 slots, including PCIe 5.0 x4 support
✔ PCIe 5.0 x16 UD Slot with reinforced design
✔ EZ-Latch Plus & EZ-Latch Click screwless PCIe and M.2 quick-release system
✔ Advanced thermal design with VRM Thermal Armor & M.2 Thermal Guard
✔ Sensor Panel Link for in-case display integration
✔ High-speed connectivity with dual USB-C, USB 3.2 Gen2, Gen2x2, and more
✔ Integrated DisplayPort & HDMI outputs (CPU dependent)
✔ Fitted I/O shield for easier installation
✔ Supports Q-Flash & Q-Flash Plus BIOS update functions
Specifications
CPU Support
AMD Socket AM5
Compatible with Ryzen 9000 / 8000 / 7000 Series processors
Chipset
AMD B850
Memory
4× DDR5 DIMM slots (up to 256GB)
Supports up to 8200MT/s (OC)
AMD EXPO & XMP support
Dual-channel architecture
Graphics (CPU Dependent)
1× DisplayPort 1.4
1× Front HDMI 1.4 port
Audio
Realtek HD Audio
Up to 7.1-channel output
Optical S/PDIF Out
Networking
Realtek 2.5GbE LAN
Realtek Wi-Fi 7 (802.11be) + Bluetooth 5.4
Expansion Slots
1× PCIe 5.0 x16 (graphics recommended slot)
2× PCIe 3.0 x1
Storage
3× M.2 Slots:
• M2A_CPU – PCIe 5.0/4.0 (depending on CPU)
• M2B_CPU – PCIe 4.0
• M2C_SB – PCIe 4.0
4× SATA 6Gb/s ports
Supports RAID 0/1/5/10 (NVMe dependent on CPU)
USB Ports
Rear I/O + Internal:
• 2× USB-C (USB 3.2 Gen2 & Gen2x2)
• USB 3.2 Gen2 Type-A
• USB 3.2 Gen1
• USB 2.0
(Total quantity as per detailed spec)
Internal Headers
24-pin ATX & 8-pin + 4-pin CPU power
Multiple fan/pump headers
RGB/ARGB headers
Front USB-C, USB 3.2, and USB 2.0
TPM header
Buttons: Power, Reset
Clear CMOS jumper

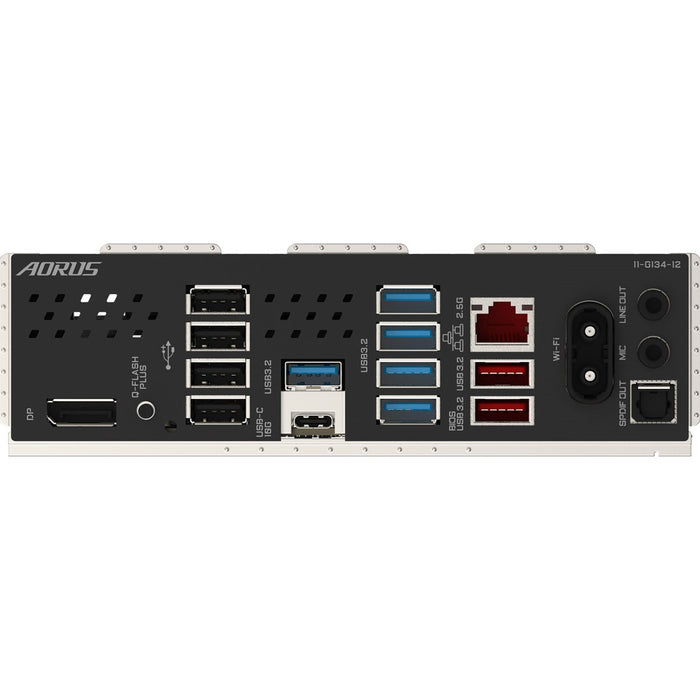

Back Panel I/O
1× DisplayPort
1× USB-C Gen2
5× USB 3.2 Gen1
2× USB 3.2 Gen2 Type-A
4× USB 2.0
2× antenna connectors
1× 2.5GbE RJ-45
Audio jacks + Optical S/PDIF
Q-Flash Plus button
Form Factor
ATX (30.5cm × 24.4cm)
