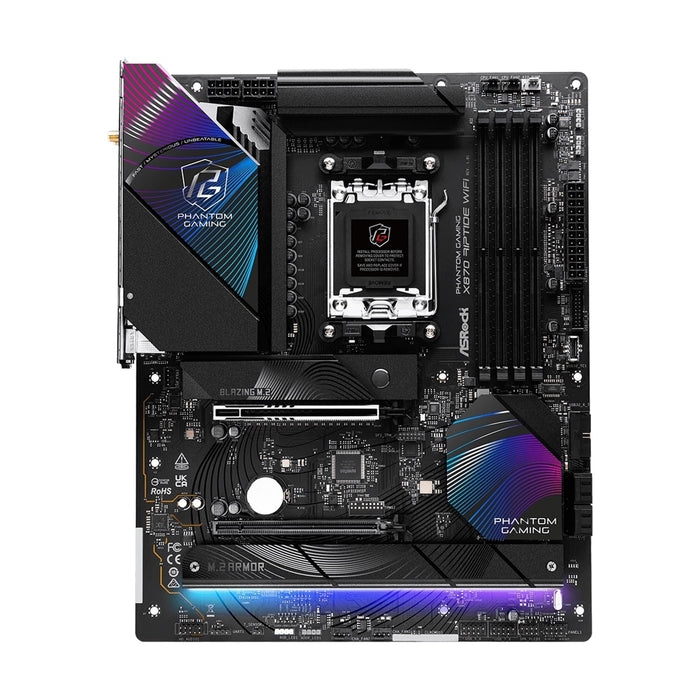

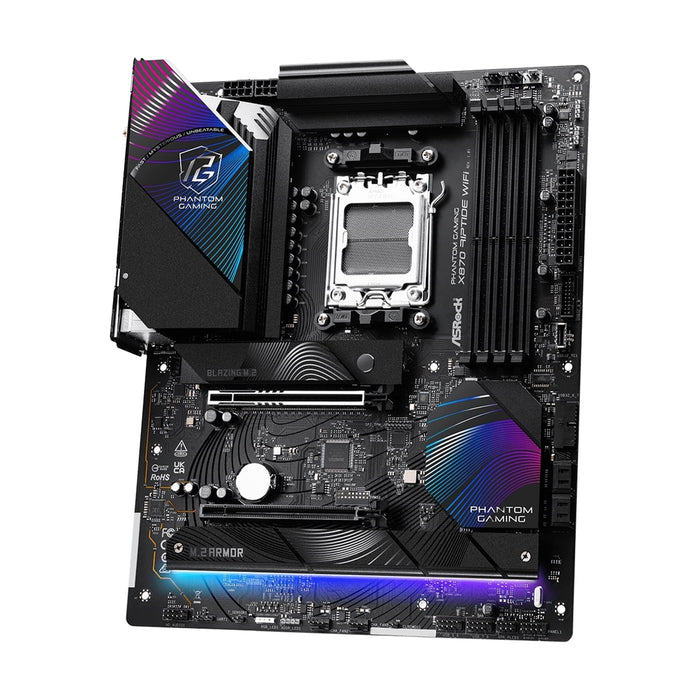

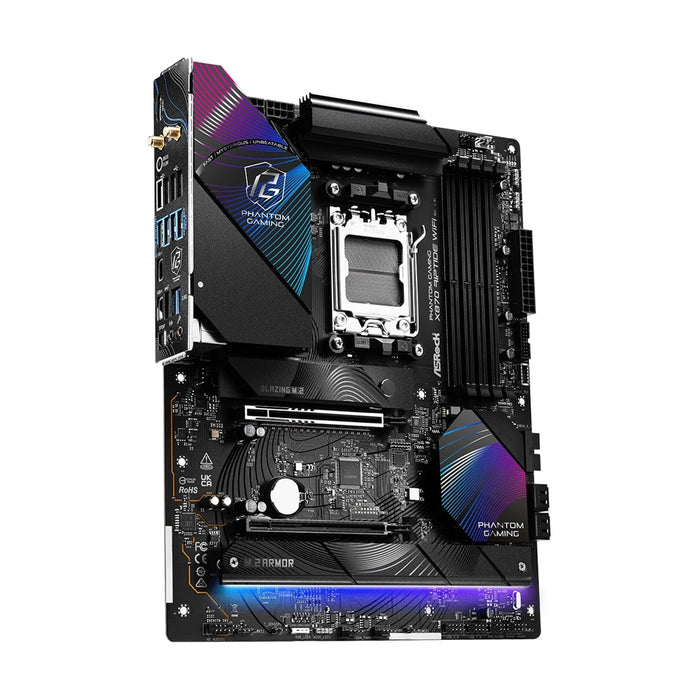

ASRock X870 Riptide WiFi AM5 ATX Gaming Motherboard

The ASRock X870 Riptide WiFi Motherboard is a premium ATX motherboard built for enthusiasts, gamers and high-performance PC builds. Powered by the latest AMD X870 chipset, it combines PCIe 5.0, USB4, WiFi 7 and advanced power delivery to deliver cutting-edge speed, stability and connectivity.

Part of ASRock’s Phantom Gaming series, it’s engineered for users who demand maximum performance, ultra-fast networking and next-generation features.

Key Features & Benefits

✔ AM5 Socket for Ryzen CPUs
Supports AMD Ryzen 7000, 8000 and 9000 series processors.

✔ 14+2+1 Phase Power Design (80A Dr.MOS)
Stable and efficient power delivery for overclocking and sustained workloads.

✔ DDR5 Memory Support
Up to 256GB DDR5 with speeds up to 8000+ MHz (OC).

✔ PCIe 5.0 Graphics & Storage
Next-gen bandwidth for GPUs and Gen5 NVMe SSDs.

✔ Triple M.2 Storage
1 × Gen5 + 2 × Gen4 slots for ultra-fast storage configurations.

✔ USB4 Type-C (40Gbps)
Dual USB4 ports for ultra-fast data transfer, display output and device connectivity.

✔ WiFi 7 + Bluetooth 5.4
Latest wireless standard for ultra-low latency and high throughput.

✔ Killer 2.5GbE LAN
Optimised networking for gaming and streaming with traffic prioritisation.

✔ Enhanced Cooling Design
Large aluminium heatsinks and 8-layer PCB for improved thermal efficiency.

✔ Lightning Gaming Ports
Low-latency USB ports designed for high-performance peripherals.

✔ BIOS Flashback
Update BIOS without CPU or RAM installed.

Technical Specifications

General

Product
ASRock X870 Riptide WiFi

Manufacturer
ASRock

Form Factor
ATX (8-layer PCB)

Chipset
AMD X870

Socket
AM5

CPU Support

Compatible CPUs
AMD Ryzen 7000 / 8000 / 9000 Series

Graphics Support
Integrated AMD RDNA graphics (CPU dependent)

Memory

Memory Slots
4 × DDR5 DIMM

Maximum Capacity
256GB

Memory Speeds
Up to 8000+ MHz (OC)

Memory Type
DDR5 Dual Channel

Profiles Supported
XMP & AMD EXPO

Expansion Slots

1 × PCIe 5.0 x16
1 × PCIe 4.0 x16 (x4 mode)

Storage

1 × PCIe Gen5 x4 M.2
2 × PCIe Gen4 x4 M.2
4 × SATA III

RAID Support
RAID 0 / 1 / 10 (NVMe)

Graphics Output

1 × HDMI 2.1 (4K @ 120Hz)
2 × USB4 Type-C (up to 8K output support)

Networking

LAN
Killer E3100G 2.5 Gigabit LAN

Wireless
WiFi 7 (802.11be) + Bluetooth 5.4

Audio

Codec
Realtek ALC4082

Channels
7.1 Channel HD Audio

Features
Nahimic Audio, high-impedance headphone support (up to 600Ω)

USB Connectivity

2 × USB4 Type-C (Rear, 40Gbps)
1 × USB 3.2 Gen2x2 Type-C (Front, 20Gbps)
2 × USB 3.2 Gen2 Type-A
6 × USB 3.2 Gen1 Type-A
8 × USB 2.0

Internal Connectors

1 × RGB Header
3 × Addressable RGB Headers
6 × Fan / Pump Headers (incl. AIO)
1 × Front USB-C Gen2x2 Header
2 × USB 2.0 Headers
2 × USB 3.2 Gen1 Headers

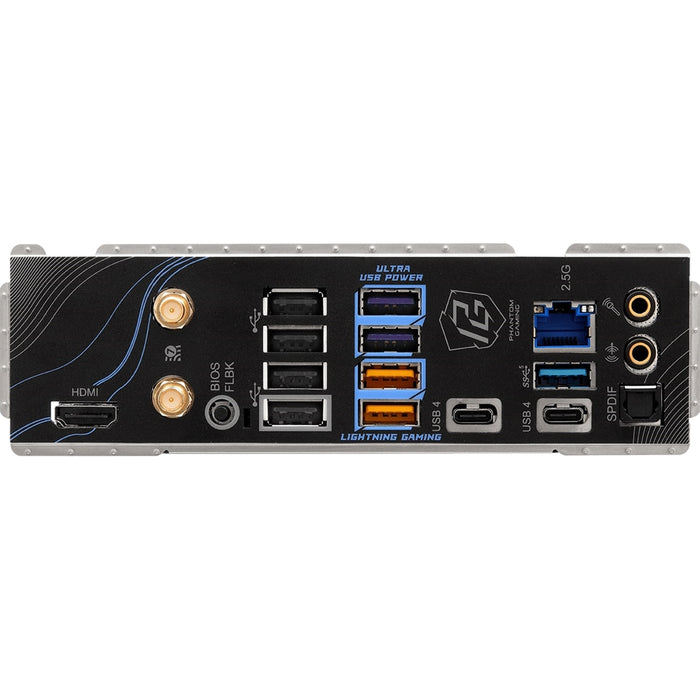

Rear I/O Ports

1 × HDMI
2 × USB4 Type-C
2 × USB 3.2 Gen2 Type-A
3 × USB 3.2 Gen1 Type-A
4 × USB 2.0
1 × RJ-45 LAN
Optical S/PDIF Out
BIOS Flashback Button
Gold-plated Audio Jacks

Dimensions

305 × 244 mm (ATX)

Why Choose the ASRock X870 Riptide WiFi

The X870 Riptide WiFi is designed for users who want top-tier performance and next-generation connectivity. With USB4, WiFi 7, PCIe 5.0 and advanced VRM design, it’s ideal for high-end gaming rigs, streaming setups and professional workloads.

Its combination of premium networking, fast storage support and strong power delivery makes it a standout choice for customers looking to build a future-proof, enthusiast-grade AM5 system.
