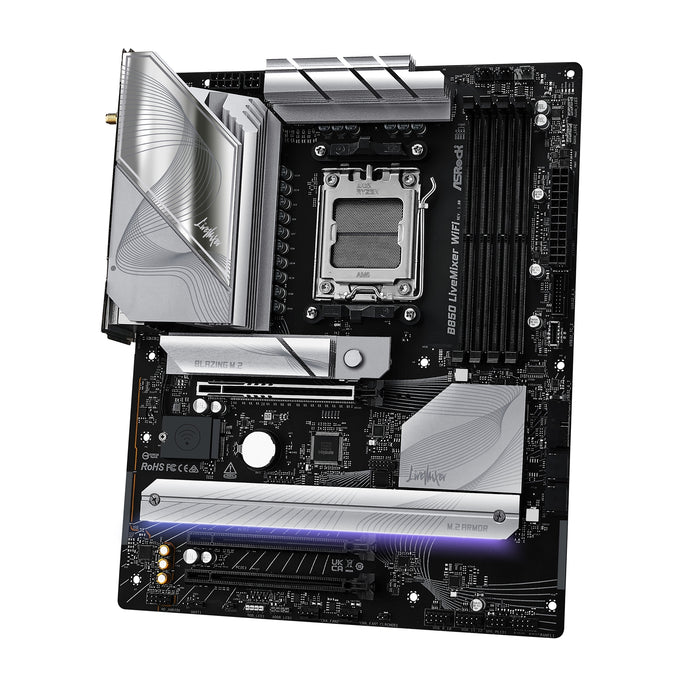

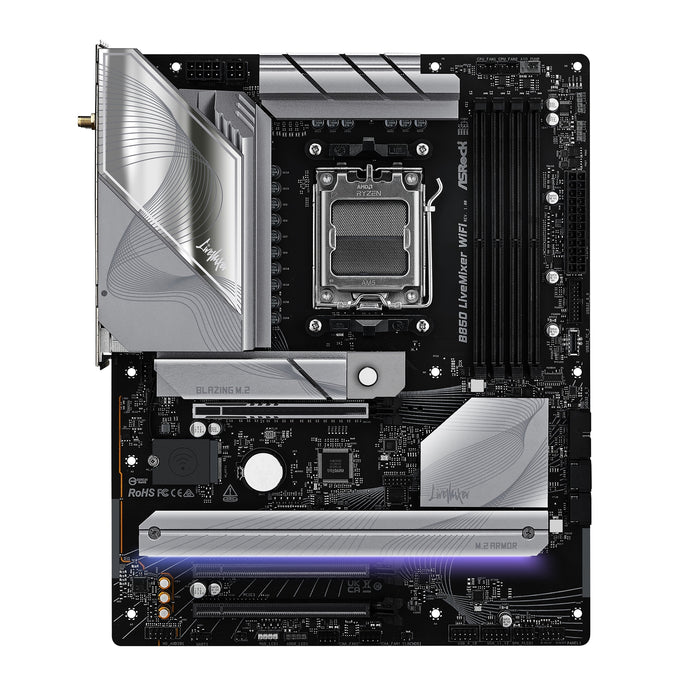

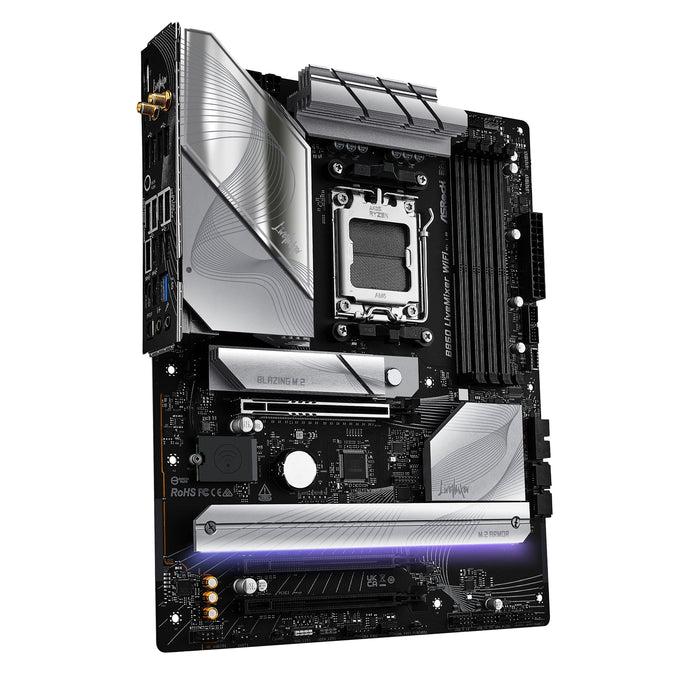

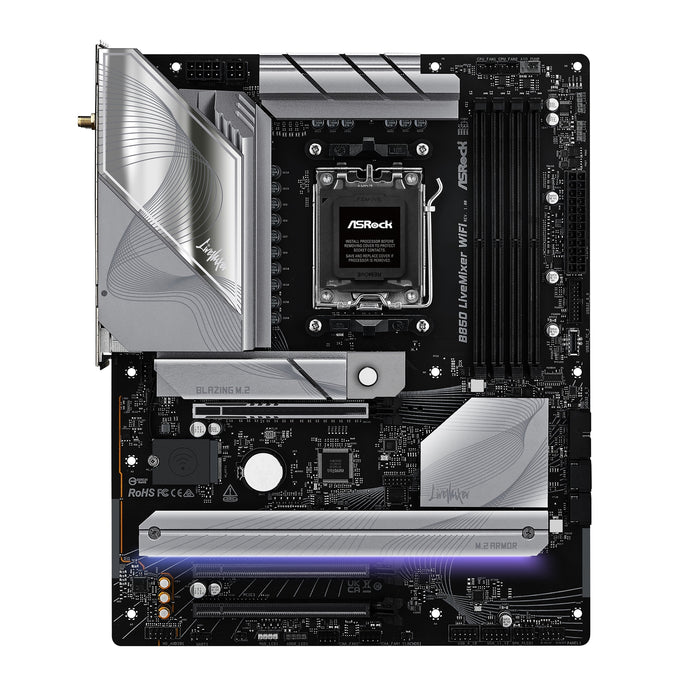

ASRock B850 LiveMixer WiFi AMD AM5 Motherboard

The ASRock B850 LiveMixer WiFi is an ATX motherboard built for high-performance AMD AM5 systems, combining advanced features for gaming, streaming, and content creation. It supports Ryzen 7000–9000 series CPUs with DDR5 memory, PCIe Gen5 graphics and storage, 2.5GbE LAN, and Wi-Fi 7, delivering exceptional speed, stability, and connectivity. Its 14+2+1 power phase design, Dr.MOS components, and thermal solutions ensure reliability under heavy workloads and overclocking scenarios.

Key Features & Benefits

✔ AMD AM5 Socket Support
Compatible with Ryzen 7000, 8000, and 9000 series CPUs for high-end desktop performance.

✔ ATX Form Factor
Full-size layout (30.5 × 24.4 cm) offers ample expansion space and optimized airflow.

✔ DDR5 Memory Support
4 × DDR5 DIMM slots with up to 256GB capacity and speeds up to 8000+(OC).

✔ PCIe Gen5 Expansion
1 × PCIe 5.0 x16 slot plus PCIe 4.0 slots for graphics and high-speed devices.

✔ Multiple M.2 Storage Options
3 × M.2 sockets (Gen5x4, Gen4x4) for ultra-fast NVMe drives, supporting RAID 0/1/10 for maximum storage performance.

✔ High-Speed Networking
2.5GbE LAN with Dragon 2.5G software and Wi-Fi 7 (802.11be) for low-latency gaming, streaming, and file transfers.

✔ USB Connectivity
Front USB 3.2 Gen2x2 Type-C (20 Gb/s) and multiple rear Type-C and Type-A ports for lightning-fast peripherals.

✔ Audio with Nahimic
7.1 HD Audio (Realtek ALC1220) with impedance sensing, separate PCB layers, and Nahimic Audio for immersive sound.

✔ Thermal & Power Design
14+2+1 power phase, 80A Dr.MOS, enlarged heatsink armor, thermistor header, and flexible I/O shield for reliable operation.

✔ EZ Update & Troubleshooting
BIOS Flashback, Auto Driver Installer, and EZ Troubleshooter simplify system updates and maintenance.

Technical Specifications

CPU & Chipset

• CPU: AMD Ryzen 7000–9000 series, AM5 socket

• Chipset: AMD B850

• Power Phases: 14+2+1, 80A Dr.MOS VCore+SOC+MISC

Memory

• Slots: 4 × DDR5 DIMM

• Max Capacity: 256GB

• Speeds: Up to 8000+(OC)

• Profiles: XMP / EXPO support

Expansion & Slots

• 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16 (x4 mode)

• 1 × M.2 Key E for Wi-Fi/BT

Storage

• CPU M.2: 1 × Gen5x4, 1 × Gen4x4

• Chipset M.2: 1 × Gen4x4

• 2 × SATA3 6 Gb/s

• RAID: SATA 0/1, M.2 NVMe 0/1/10

Graphics

• HDMI 2.1 (4K @ 120Hz), DisplayPort 1.4 (4K @ 120Hz)

• Integrated AMD RDNA graphics support (CPU dependent)

Networking

• 2.5GbE LAN (Dragon RTL8125BG)

• 802.11be Wi-Fi 7, MU-MIMO, Bluetooth 5.4

Audio

• 7.1 HD Audio (Realtek ALC1220), impedance sensing, Nahimic Audio suite

Connectors & Headers

• CPU, chassis, and AIO fan connectors with Smart Fan Speed Control

• Thermistor headers, RGB and ARGB headers

• Front USB 3.2 Gen2x2 Type-C, multiple USB 3.2/2.0 headers

Rear I/O

• 2 × Antenna ports, 1 × HDMI, 1 × DisplayPort, Optical SPDIF

• 1 × USB 3.2 Gen2 Type-C, 1 × USB 3.2 Gen2 Type-A

• 4 × USB 3.2 Gen1, 8 × USB 2.0, 1 × RJ-45 LAN, BIOS Flashback

• Gold-plated Line Out / Mic jacks

Form Factor & Accessories

• ATX: 30.5 × 24.4 cm, 8-layer PCB

• Accessories: 2 × SATA cables, 2 × Wi-Fi antennas, 1 × thermistor cable

Why Choose ASRock B850 LiveMixer WiFi

Designed for high-performance gaming, streaming, and multitasking, the B850 LiveMixer WiFi combines DDR5 memory, PCIe Gen5, 2.5GbE LAN, Wi-Fi 7, and advanced thermal design to deliver a stable, fast, and reliable AMD AM5 platform for enthusiasts and creative professionals.
