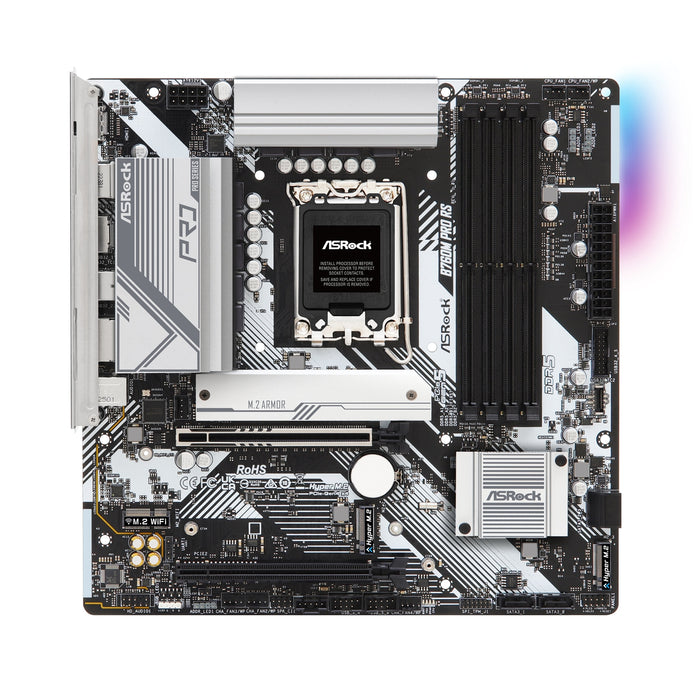

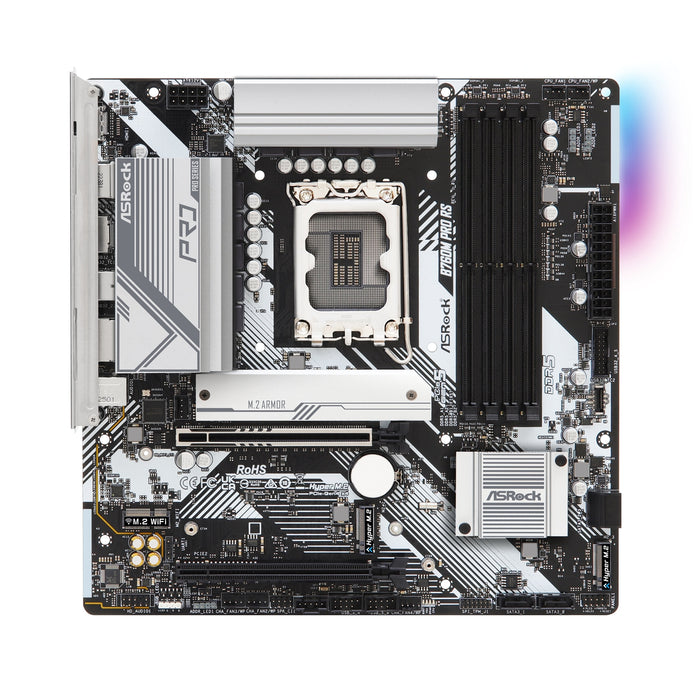

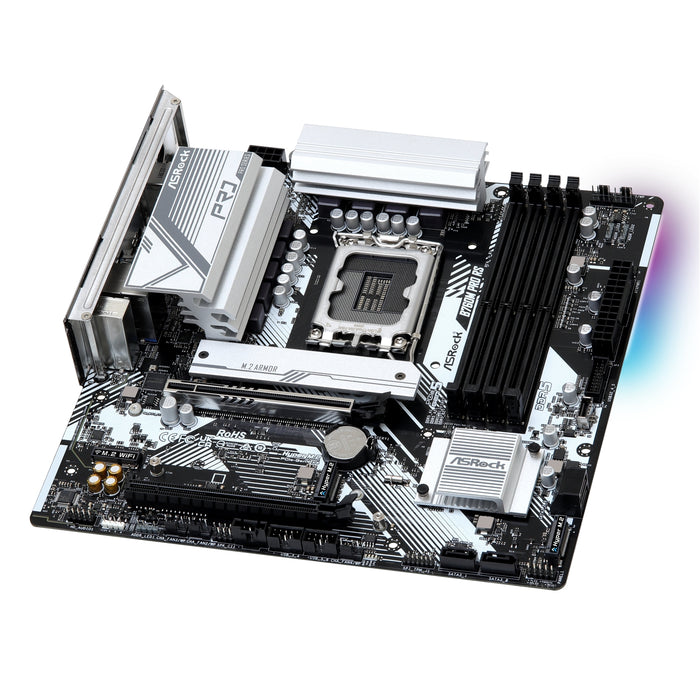

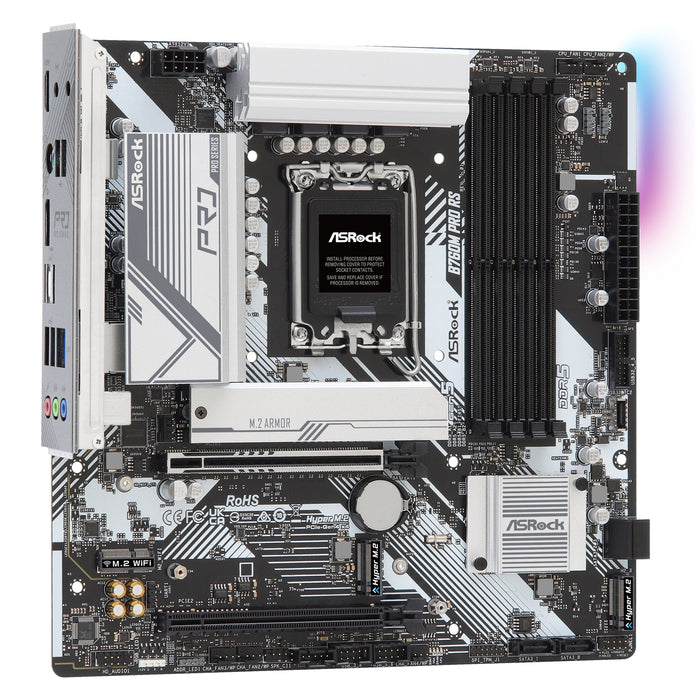

ASRock B760M Pro RS DDR5 Micro-ATX Motherboard

The ASRock B760M Pro RS Motherboard is a high-performance Micro-ATX motherboard designed for modern Intel systems. Supporting 12th, 13th and 14th Gen Intel Core processors, it combines DDR5 memory, PCIe 5.0 graphics support and ultra-fast connectivity to deliver exceptional performance for gaming, content creation and productivity.

With a robust 7+1+1 power phase design, pre-installed I/O shield and advanced cooling and connectivity options, the B760M Pro RS is built for stability, efficiency and ease of use.

Key Features & Benefits

✔ LGA1700 Socket for Intel CPUs
Supports 12th, 13th and 14th Gen Intel Core processors.

✔ DDR5 Memory Support
Up to 256GB DDR5 RAM with speeds up to 7200+ MHz (OC) for next-gen performance.

✔ PCIe 5.0 x16 Slot
Future-ready support for the latest graphics cards.

✔ Triple M.2 PCIe Gen4 Slots
Ultra-fast storage with up to 64Gb/s bandwidth for NVMe SSDs.

✔ 2.5GbE LAN Connectivity
High-speed wired networking for gaming, streaming and large file transfers.

✔ 7+1+1 Power Phase Design
Stable power delivery using 50A Dr.MOS components for consistent performance.

✔ Pre-Installed I/O Shield
Simplifies installation and improves durability.

✔ Polychrome RGB Support
Customise lighting with onboard RGB and addressable RGB headers via ASRock Polychrome SYNC.

✔ EZ Troubleshooting & Updates
Includes Post Status Checker and Auto Driver Installer for easier setup and maintenance.

Technical Specifications

General

Product
ASRock B760M Pro RS

Manufacturer
ASRock

Form Factor
Micro-ATX

Chipset
Intel B760

Socket
LGA1700

CPU Support

Compatible CPUs
12th / 13th / 14th Gen Intel Core Processors

Technologies Supported
Intel Turbo Boost Max 3.0
Intel Thermal Velocity Boost (TVB)
Intel Adaptive Boost Technology (ABT)

Memory

Memory Slots
4 × DDR5 DIMM

Maximum Capacity
256GB

Memory Speeds
Up to 7200+ MHz (OC)

Memory Type
DDR5 Dual Channel

XMP Support
Intel XMP 3.0

Expansion Slots

1 × PCIe 5.0 x16
1 × PCIe 3.0 x16 (x4 mode)

Storage

3 × M.2 PCIe Gen4 x4 Slots
4 × SATA III 6Gb/s Ports

RAID Support
RAID 0 / 1 / 5 / 10

Graphics Output

1 × HDMI 2.1 (4K @ 60Hz)
1 × DisplayPort 1.4 (up to 8K @ 60Hz / 5K @ 120Hz)

Networking

LAN
2.5 Gigabit LAN (Dragon RTL8125BG)

Wireless
M.2 Key-E slot for optional WiFi module

Audio

Codec
Realtek ALC897

Channels
7.1 Channel HD Audio

Audio Software
Nahimic Audio

USB Connectivity

1 × USB 3.2 Gen1 Type-C (Rear)
1 × USB 3.2 Gen1 Type-C (Front Header)
5 × USB 3.2 Gen1 Type-A
6 × USB 2.0

Internal Connectors

3 × Addressable RGB Headers
1 × RGB Header
6 × Fan / Pump Headers
1 × Thunderbolt AIC Header
1 × USB 3.2 Gen1 Header
2 × USB 2.0 Headers

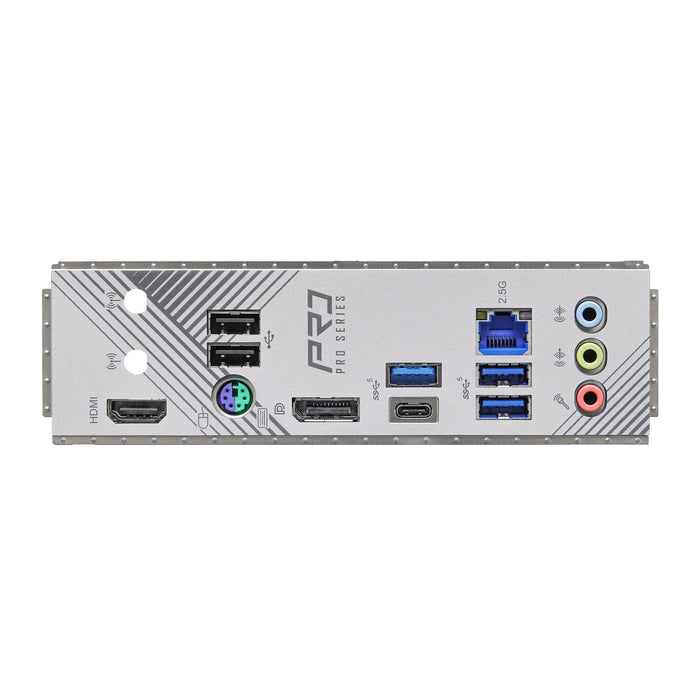

Rear I/O Ports

1 × HDMI
1 × DisplayPort
1 × USB Type-C
3 × USB Type-A (Gen1)
2 × USB 2.0
1 × RJ-45 LAN
HD Audio Jacks
PS/2 Combo Port

Dimensions

244 × 244 mm (Micro-ATX)

Why Choose the ASRock B760M Pro RS

The B760M Pro RS is a future-ready motherboard offering a strong balance of performance, expandability and reliability. With DDR5 support, PCIe 5.0 graphics, triple M.2 storage and 2.5GbE networking, it’s an excellent choice for modern gaming PCs and high-performance desktop builds.
