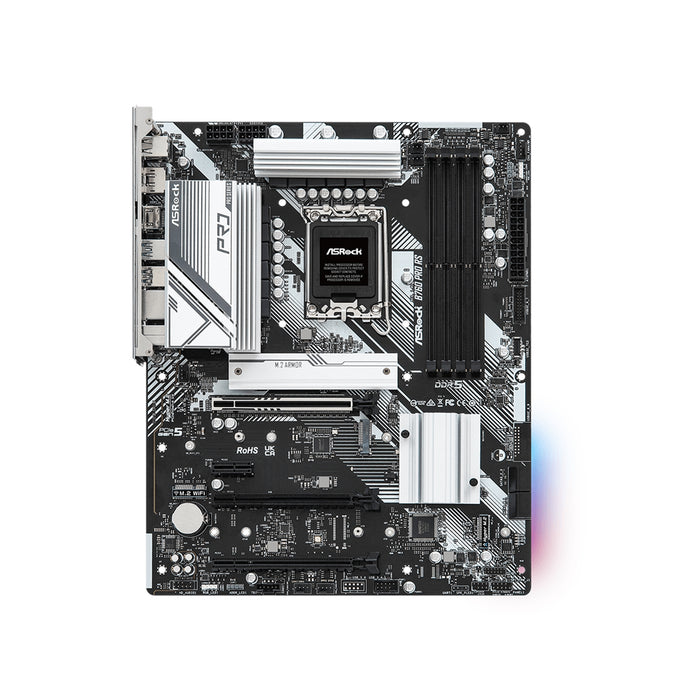

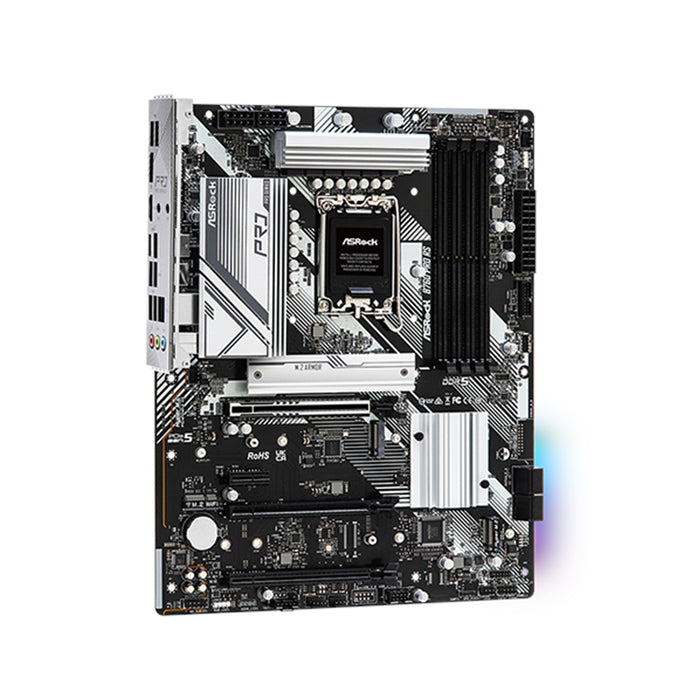

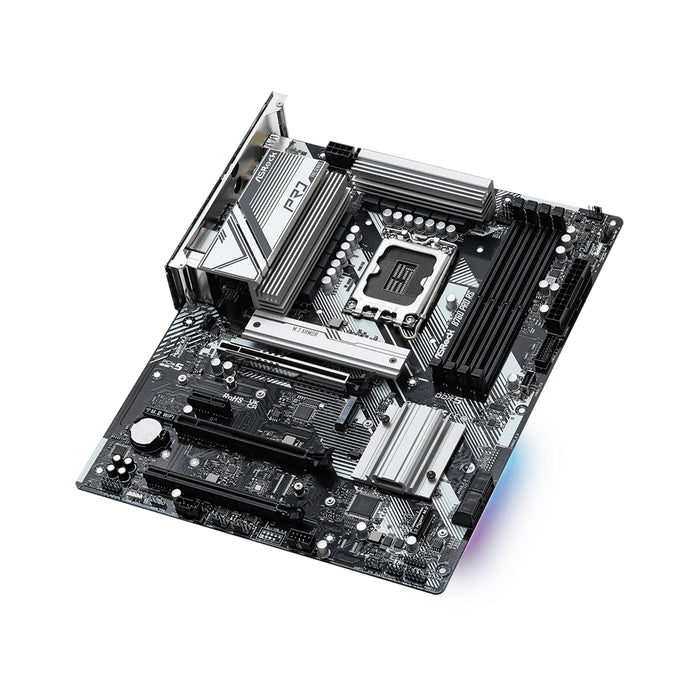

ASRock B760 Pro RS ATX DDR5 LGA1700 Motherboard

The ASRock B760 Pro RS Motherboard delivers a powerful, future-ready platform for modern Intel systems. Built for mainstream users who demand performance without overspending, this ATX motherboard combines DDR5 memory support, PCIe 5.0 graphics, and ultra-fast connectivity in a well-balanced, reliable design.

Part of the Race Sport (RS) Edition, it offers the perfect blend of speed, stability and expandability, making it ideal for gaming, content creation and productivity builds.

Key Features & Benefits

✔ LGA1700 Socket for Intel CPUs
Supports 12th and 13th Gen Intel Core processors with advanced performance technologies.

✔ DDR5 Memory Performance
Up to 192GB DDR5 RAM with speeds up to 7200+ MHz (OC) and XMP 3.0 support.

✔ PCIe 5.0 Graphics Slot
Next-gen bandwidth up to 128GB/s, ready for high-end GPUs.

✔ Triple M.2 NVMe Storage
Includes PCIe Gen4 x4 slots for ultra-fast SSD performance.

✔ 10+1+1 Power Phase Design
Stable power delivery with 50A Dr.MOS for consistent system performance.

✔ 2.5GbE LAN
Enhanced networking for gaming, streaming and high-speed data transfer.

✔ USB 3.2 Gen2 Connectivity
Type-A and Type-C ports with up to 10Gbps transfer speeds.

✔ Pre-Installed I/O Shield
Improves build convenience and protection.

✔ Custom RGB Lighting
Synchronise lighting via ASRock Polychrome SYNC and compatible devices.

✔ Built-in eDP Connector
Supports optional internal display panels for advanced custom builds.

Technical Specifications

General

Product
ASRock B760 Pro RS

Manufacturer
ASRock

Form Factor
ATX

Chipset
Intel B760

Socket
LGA1700

CPU Support

Compatible CPUs
12th / 13th Gen Intel Core Processors

Technologies
Intel Turbo Boost Max 3.0
Intel Thermal Velocity Boost (TVB)
Intel Adaptive Boost Technology (ABT)

Memory

Memory Slots
4 × DDR5 DIMM

Maximum Capacity
192GB

Memory Speeds
Up to 7200+ MHz (OC)

Memory Type
DDR5 Dual Channel

XMP Support
Intel XMP 3.0

Expansion Slots

1 × PCIe 5.0 x16
1 × PCIe 4.0 x16 (x4 mode)
1 × PCIe 3.0 x16 (x1 mode)
1 × PCIe 3.0 x1

Storage

3 × M.2 Slots (PCIe Gen4 x4 / x2)
4 × SATA III 6Gb/s

RAID Support
RAID 0 / 1 / 5 / 10

Graphics Output

1 × HDMI 2.1 (4K @ 60Hz)
1 × DisplayPort 1.4 (up to 8K @ 60Hz / 5K @ 120Hz)
1 × eDP 1.4 (Full HD @ 60Hz)

Networking

LAN
2.5 Gigabit LAN (Dragon RTL8125BG)

Wireless
M.2 Key-E slot for optional WiFi module

Audio

Codec
Realtek ALC897

Channels
7.1 Channel HD Audio

Audio Software
Nahimic Audio

USB Connectivity

2 × USB 3.2 Gen2 (Type-C: Rear + Front)
1 × USB 3.2 Gen2 Type-A (Rear)
6 × USB 3.2 Gen1
4 × USB 2.0

Internal Connectors

2 × RGB Headers
2 × Addressable RGB Headers
7 × Fan / Pump Headers
1 × eDP Connector
1 × Thunderbolt AIC Header
1 × USB 3.2 Gen2 Front Header

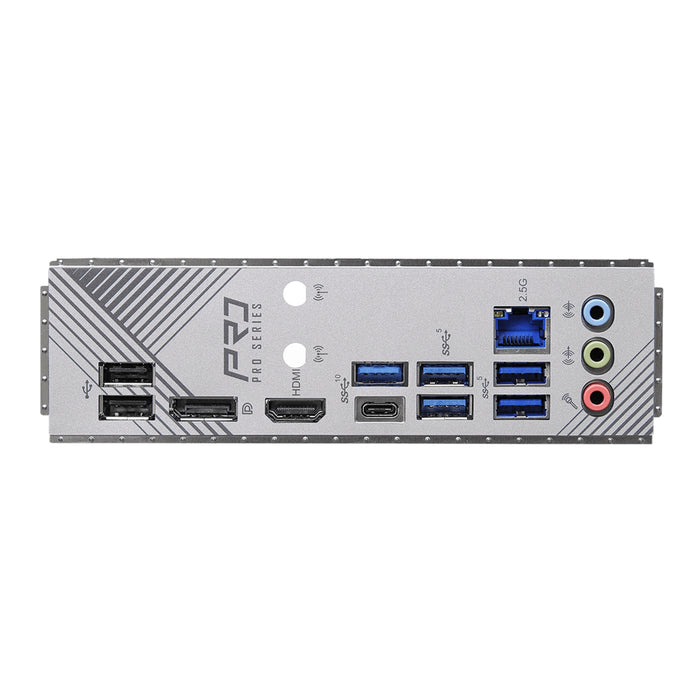

Rear I/O Ports

1 × HDMI
1 × DisplayPort
1 × USB Type-C (Gen2)
1 × USB Type-A (Gen2)
4 × USB Type-A (Gen1)
2 × USB 2.0
1 × RJ-45 LAN
HD Audio Jacks

Dimensions

305 × 244 mm (ATX)

Why Choose the ASRock B760 Pro RS

The B760 Pro RS is a versatile, performance-focused ATX motherboard designed for users who want modern features without premium pricing. With DDR5 support, PCIe 5.0, strong power delivery and high-speed connectivity, it provides a solid foundation for gaming systems and professional workloads alike.
