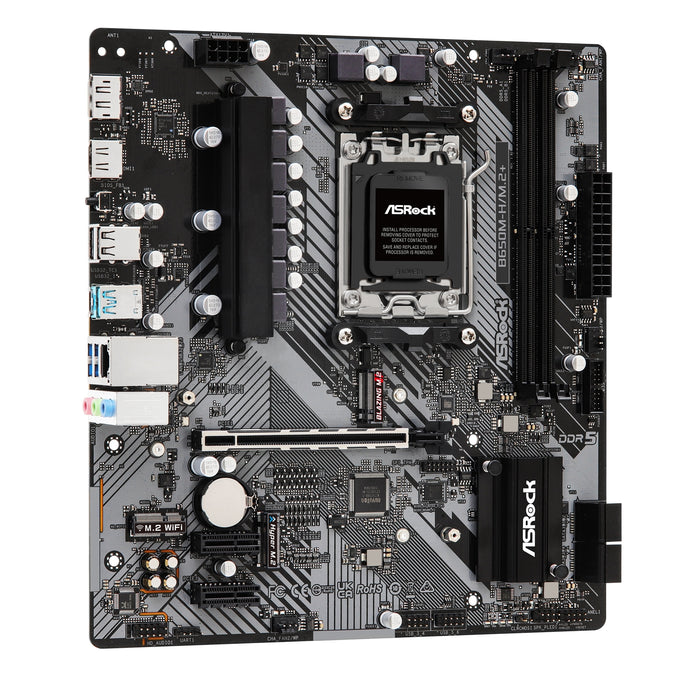

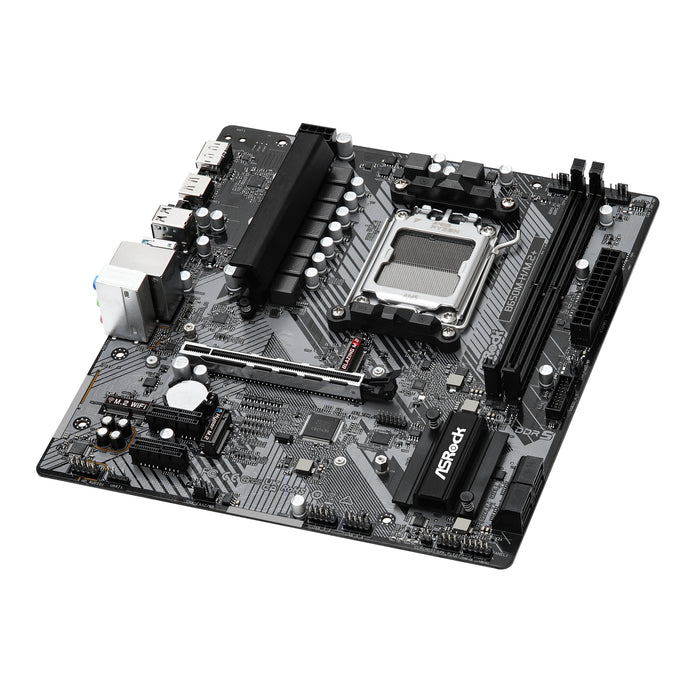

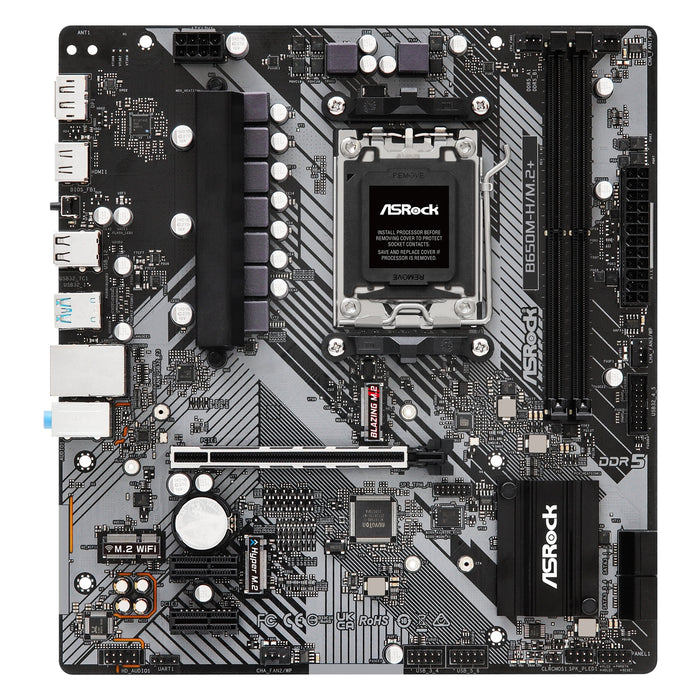

ASRock B650M-H/M.2+ AM5 Micro-ATX DDR5 Motherboard

The ASRock B650M-H/M.2+ Motherboard is a modern entry-level AM5 platform designed for the latest AMD Ryzen processors. Combining DDR5 memory, PCIe Gen5 storage and reliable connectivity, it delivers excellent performance for everyday computing, gaming and upgrade-focused builds.

Built with durability and simplicity in mind, this motherboard offers essential next-gen features without unnecessary complexity or cost.

Key Features & Benefits

✔ AM5 Socket for Ryzen Processors
Supports AMD Ryzen 7000, 8000 and 9000 series CPUs.

✔ DDR5 Memory Support
Up to 128GB DDR5 RAM with speeds up to 6400+ MHz (OC) and XMP/EXPO support.

✔ PCIe Gen5 M.2 Storage
Blazing-fast NVMe performance with Gen5 x4 bandwidth (128Gb/s).

✔ Dual M.2 Slots
Flexible storage with Gen5 + Gen4 M.2 support.

✔ 6+1+1 Power Phase Design
Stable and efficient power delivery using 50A Dr.MOS components.

✔ BIOS Flashback Button
Update BIOS easily without CPU or memory installed.

✔ Gigabit LAN Connectivity
Reliable wired networking for everyday use.

✔ EZ Troubleshooting Tools
Includes Post Status Checker and Auto Driver Installer.

✔ Compact Micro-ATX Design
Ideal for smaller builds without sacrificing key features.

Technical Specifications

General

Product
ASRock B650M-H/M.2+

Manufacturer
ASRock

Form Factor
Micro-ATX

Chipset
AMD B650

Socket
AM5

CPU Support

Compatible CPUs
AMD Ryzen 7000 / 8000 / 9000 Series

Graphics Support
Integrated AMD RDNA graphics (CPU dependent)

Memory

Memory Slots
2 × DDR5 DIMM

Maximum Capacity
128GB

Memory Speeds
Up to 6400+ MHz (OC)

Memory Type
DDR5 Dual Channel

Profiles Supported
XMP & AMD EXPO

Expansion Slots

1 × PCIe 4.0 x16
2 × PCIe 4.0 x1

Storage

1 × PCIe Gen5 x4 M.2 (128Gb/s)
1 × PCIe Gen4 x4 M.2 (64Gb/s)
4 × SATA III 6Gb/s

RAID Support
RAID 0 / 1 / 10 (SATA & NVMe)

Graphics Output

1 × HDMI 2.1 (4K @ 120Hz)
1 × DisplayPort 1.4 (4K @ 120Hz)

Networking

LAN
Gigabit LAN (Realtek RTL8111H)

Wireless
M.2 Key-E slot for optional WiFi module

Audio

Codec
Realtek ALC897

Channels
7.1 Channel HD Audio

Audio Software
Nahimic Audio

USB Connectivity

1 × USB 3.2 Gen1 Type-C (Rear)
5 × USB 3.2 Gen1 Type-A
6 × USB 2.0

Internal Connectors

3 × Fan / Pump Headers
1 × CPU Fan Header
2 × USB 2.0 Headers
1 × USB 3.2 Gen1 Header

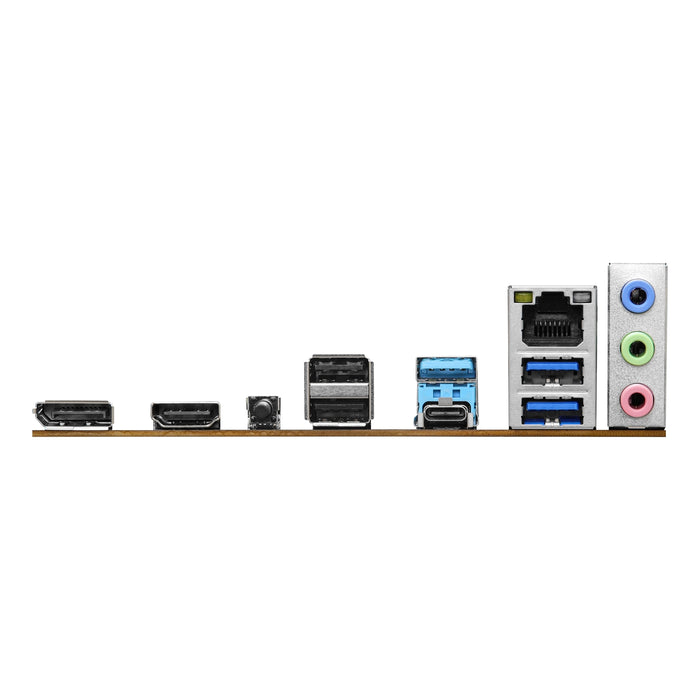

Rear I/O Ports

1 × HDMI
1 × DisplayPort
1 × USB Type-C
3 × USB Type-A (Gen1)
2 × USB 2.0
1 × RJ-45 LAN
BIOS Flashback Button
HD Audio Jacks

Dimensions

244 × 226 mm (Micro-ATX)

Why Choose the ASRock B650M-H/M.2+

The B650M-H/M.2+ is an ideal choice for users looking to build on the latest AM5 platform at an affordable price point. With DDR5 memory, PCIe Gen5 storage support and essential modern connectivity, it provides a solid foundation for future upgrades while keeping costs under control.
